Hydraulic reel

Affiliated Category: Hydraulic reel series

In the construction machinery, special vehicles, industrial automation, mobile telescopic boom and other equipment, there are a large number of hydraulic winding and hydraulic and cable joint winding applications. In response to this demand, Ruigujie has developed a series of reels for winding hydraulic hoses and electro-hydraulic hoses. Spring-driven hydraulic reels are used to meet the connection requirements of most constant hydraulic hoses.

Keywords: reel, double support reel

Online feedback

Product Description

According to customer needs, the hydraulic reel series is mainly divided into three series: hydraulic reel, electro-hydraulic reel, large frame hydraulic reel, provide different installation methods, hose length, pressure level to meet the diverse needs, hose length from 3 meters to 79 meters. Hose diameter from 1/4 to 1 inch are mature products optional.

Features:

●Coil stamping forming, light weight, strong overall strength. Diameters range from 12 inches to 39 inches.

● Both the spring box and the spring cover adopt mold components, which have good sealing performance, light weight and high strength

● Reel using electrophoresis, spray molding technology, the overall corrosion resistance, oil resistance

● Long service life, drive spring as power stability

● Rotary joint, service life 300000 times

● High quality custom parallel hose

● Maximum pressure up to 350bar

● Electro-hydraulic reel IP grade up to IP68

● Can be customized on demand

Precautions for use

The direction of the pipe is horizontal or upward, and the downward pipe needs to be contacted with Sharp to confirm the effective length.

The standard installation method is that the reel surface is perpendicular to the horizontal plane, and other installation angles need to be contacted and confirmed by sharp skills.

Reels standard thread

Inlet thread of reel: G internal thread

Thread at the hose connection inside the reel: G internal thread

Hose Outlet Thread: Metric M Thread Loose Nut Internal Thread, 24 Degree Cone O-ring Seal

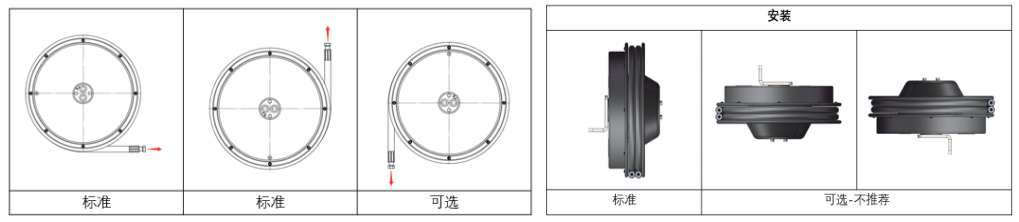

Rotary direction

When facing the side of the reel without mounting base, turn clockwise to right and turn counterclockwise to left.

Remarks

At present, the application of side-mounted hydraulic reel has been developed by Guangrui Gujie, and the type installation system serves most of the customers and meals. Faran asked the safety consultant to confirm that the fixed mixture will be provided with technical support by Farnafan double-tube, four-tube L-type and Ruijie T team.
