Stainless steel reel
Affiliated Category: Stainless steel reel series
Keywords: reel, double support reel
Product Description

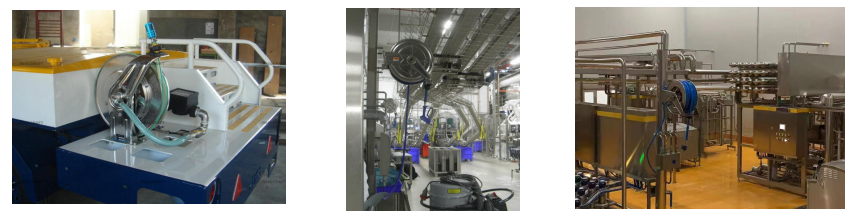

Ruigujie stainless steel reel series, the use of 304 stainless steel stamping manufacturing, surface chemical treatment, has a strong corrosion resistance and anti-fouling, through the reasonable storage of the hose is not used, so as to reduce the hose retreat caused by the accident, will be used to transport chemical fluid or used to clean the hose life, colleagues to improve the working environment. Stainless steel reels are used in a wide variety of applications, such as food production, cleaning, chemical delivery, and industrial solvent handling. At the same time, the stainless steel reel can also be used in coastal and offshore environments with harsh requirements for corrosion resistance. The series can be produced according to customer requirements using 316L material, will further improve the corrosion resistance.

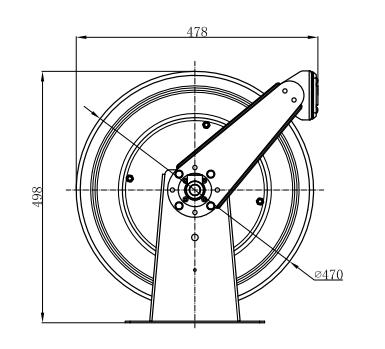

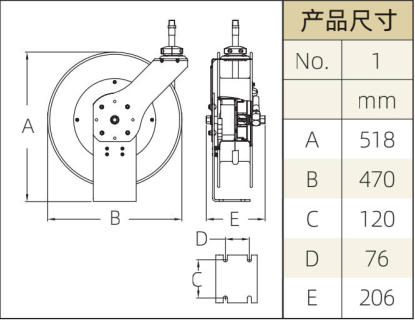

| Model (without hose) | Total Weight | Maximum pressure | Hose inner diameter | Hose outer diameter | Hose outlet | Reel Inlet | Hose length | Dimensions (mm) | ||
| kg | Bar | mm | mm | NPT internal thread | NPT internal thread | m | Long | Wide | High | |
| Max. temperature of LV and MV reel 99 ℃(* Max. temperature 65 ℃) | ||||||||||
| RGJ83753-L15 | 15 | 21 | 10 | 15 | 3/8 | 3/8 | 15 | 492 | 206 | 521 |
| RGJ83753-L21 | 16 | 21 | 10 | 15 | 3/8 | 3/8 | 21 | 492 | 206 | 521 |
| RGJ83754-L15 | 15 | 21 | 13 | 19 | 1/2 | 1/2 | 15 | 492 | 206 | 521 |
| RGJ83754-L21 | 17 | 21 | 13 | 19 | 1/2 | 1/2 | 21 | 492 | 206 | 521 |
| RGJ0090-38L23 | 17 | 21 | 10 | 15 | 3/8 | 3/8 | 23 | 479 | 226 | 498 |
| RGJ0090-12L21 | 17 | 21 | 13 | 19 | 1/2 | 1/2 | 21 | 479 | 226 | 498 |
| RGJ0090-34L12 | 17 | 21 | 19 | 27 | 3/4 | 3/4 | 12 | 479 | 226 | 498 |
| RGJ0090-12L25 | 18 | 21 | 13 | 19 | 1/2 | 1/2 | 25 | 479 | 291 | 498 |
| RGJ0090-12L30 | 18 | 21 | 13 | 19 | 1/2 | 1/2 | 30 | 479 | 291 | 498 |
| RGJ0090-34L20 | 18 | 21 | 19 | 27 | 3/4 | 3/4 | 20 | 479 | 291 | 498 |
| This series of products include hoses. If you need hoses, please consult Ruigujie Industrial Technology (Changzhou) Co., Ltd. | ||||||||||
