Single support reel

Affiliated Category: Single support reel series

The single support series products are the classic series products of Ruigujie. The disk surface, base direct, guide frame, guide frame and ratchet pawl are all made of molds. The surface is sprayed with plastic, which is beautiful and elegant. The guide frame has elegant radian. The direction of the guide frame can be adjusted according to different installation methods. The single support structure is convenient for customers to carry out maintenance and pre-tightening operation in the later period. The mortgage series is equipped with high-quality PVC hoses for water and gas transmission, and the medium-pressure series is equipped with steel wire hose to meet the requirements of lubricating oil, fuel oil and grease transportation. Single support series of closed products with metal shell can be selected. This series of products can be selected with slow recovery products, which can enable customers to automatically and slowly recover the hose after the hose is released, thus ensuring safety and providing better use experience.

Keywords: reel, double support reel

Online feedback

Product Description

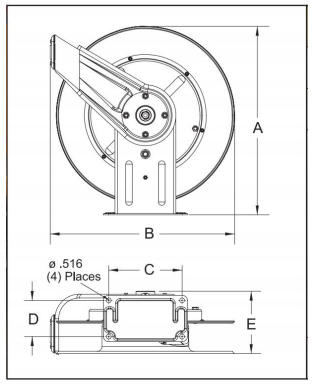

Product size

No.	1	2
	mm	mm
A	514	514
B	502	502
C	198	198
D	98	98
E	178	210
The four mounting apertures at the bottom of the base are 13.1mm

单支撑卷盘

Model (with hose)	Total Weight	Maximum pressure	Hose inner diameter	Hose outer diameter	Hose outlet	Reel Inlet	Hose length	Model (without hose)	Total Weight	Maximum pressure	Corresponding dimension
Model (with hose)	8	Bar	mm	mm	NPT external thread	NPT internal thread	m	Model (without hose)	kg	Bar	Number
Low pressure gas/water reel temperature up to 65
RGJ0061-L15	20	21	10	15	1/4	1/2	15	RGJ0061	18	35	1
RGJ0061-L21	21	21	10	15	1/4	1/2	21	RGJ0061	18	35	1
RGJ0061-L23	29	21	10	15	3/8	1/2	23	RGJ0061-B	25	35	2
RGJ0061-L30	34	21	10	15	3/8	1/2	30	RGJ0061-B	25	35	2
RGJ0061-L15B	21	21	13	19	3/8	1/2	15	RGJ0061-C	19	35	1
RGJ0061-L15C	21	21	13	19	1/2	1/2	15	RGJ0061-C	19	35	1
RGJ0061-L23	33	21	13	19	3/8	1/2	23	RGJ0061-D	25	35	2
RGJ0061-L7.5	21	17	19	27	3/4	3/4	7.5	RGJ0061-B	20	35	1
RGJ0061-L15D	21	17	19	27	3/4	3/4	15	RGJ0061-D	20	35	2
Medium pressure oil reel temperature up to 99°C
RGJ0061-L15	25	155	10	18	3/8	1/2	15	RGJ0061	20	207	1
RGJ0061-L23	39	179	10	18	3/8	1/2	23	RGJ0061-B	27	207	2
RGJ0061-L15C	26	138	13	22	1/2	1/2	15	RGJ0061-C	19	207	1
RGJ0061-L20	35	224	13	21	1/2	1/2	20	RGJ0061-D	27	224	2
High-pressure grease reel temperature up to 99°C
RGJ0061-GL15	25	345	6	15	1/4	1/2	15	RGJ0061-G	20	345	1
RGJ0061-GL23	36	345	6	15	1/4	1/2	23	RGJ0061-GB	27	345	2
RGJ0061-GL30	39	345	6	15	1/4	1/2	30	RGJ0061-GB	27	345	2
RGJ0061-GL15B	27	276	10	19	1/4	1/2	15	RGJ0061-G	21	345	1
RGJ0061-GL23B	41	331	10	19	1/4	1/2	23	RGJ0061-GB	27	345	2
When users order reels with hose, the standard configuration of low-pressure reels is PVC hose. Please consult Ruigujie Industrial Technology (Changzhou) Co., Ltd. for the configuration of medium and high-pressure reel hoses.
